MPC series
An arbitrary load can be set,
and it will warn you with buzzer and lamp.
MPC series Feature
It enables you to do push-pull load mearusement easily in your hand.
The reset button is put near the tip of the finger for more efficient work, so the following measurement is proceeded at once.
An arbitrary load can be set.   Moreover, you can check the measurement not only by watching the scale, but also with buzzer and lamp.
An external output (transistor output) is attached.
Seven kinds of attachments are attached normally.
Please use it for various measurements.
- Guaranteed term One year
- Example of using measurement
Operation power measurement of switch
Soldering strength measurement
Opening and shutting power measurement of door
Destruction measurement of plastic component
Load setting in clamping lever mechanism etc.
★Combination agreement load stand
K-501・505M-501・505KS-501KM-501

Manual of MPC series

Main body externals dimensional drawing (MPC-5N-500N)
Accessory (attachment) externals dimensional drawing (MPC-5N-500N)

Accessory (attachment) externals dimensional drawing (MPC-1KN-5KN)
Special steering wheel externals dimensional drawing (To 500N )
Connected cable externals dimensional drawing
Control unit externals dimensional drawing

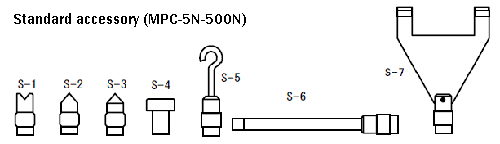

standard accessory (MPC-5N-500N)

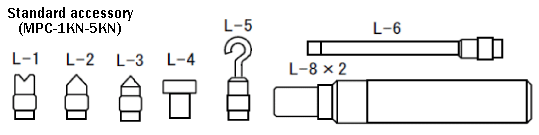

standard accessory (MPC-1KN-5KN)
Model Greates
measured value
Minimum
scale value
Accuracy Stroke Weight
MPC-5N 5N 0.05N ±0.2% of full-scale 10mm About
750g
MPC-10N 10N 0.1N
MPC-20N 20N 0.2N
MPC-30N 30N 0.2N
MPC-50N 50N 0.5N
MPC-100N 100N 1N
MPC-200N 200N 2N
MPC-300N 300N 2N
MPC-500N 500N 5N
MPC-1KN 1KN 5N About
3.7kg
MPC-2KN 2KN 10N
MPC-3KN 3KN 10N
MPC-5KN 5KN 20N
It makes an effort as brought close to a color as original as possible, and there is an image when it is actual and it differs somewhat from the color.
Please acknowledge it.
