M series
It is possible to move in the column bar, and the work set is smooth.

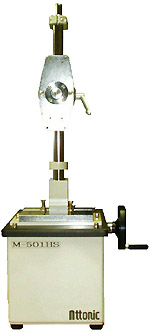

M-501H(manual vertical load measuring stand)
M-501HS - It is a medium load measuring stand.
- It is push-pull load measuring stand up to 500N (50kg).
- The column bar (installation parts such as sensors and measuring instruments) can be freely moved within the range of the stroke , and it can correspond to wide measurement and inspection.

- Combining acceptable model
Push-pull tester:AP seriesAMP seriesAMPS seriesiMPS-500N or less)AMPC seriesiMPC-500N or lessj
EDigital force gauge:
ARF seriesiARF-50 or lessj
With reversible mechanism type
Model M-501HS
Size mm(length ~ side ~ depth) 790~355~360
Weight About 45
Maximum load capacity 500N
The maximum stroke 100
Sending pitch 2.0/1rev.
Main body externals dimensional drawing
Without reversible mechanism type
Model M-501HN
Size mm(length ~ side ~ depth) 790~355~360
Weight About 45
Maximum load capacity 500N
The maximum stroke 100
Sending pitch 2.0/1rev.
Main body externals dimensional drawing
M-501E(electric vertical load measuring stand)

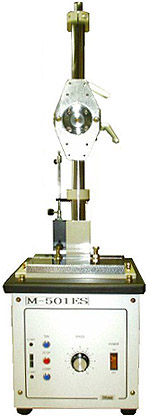

M-501ES

- It is a medium load measuring stand.
- It is push-pull load measuring stand up to 500N (50kg).
- The column bar (installation parts such as sensors and measuring instruments) can be freely moved within the range of the stroke , and it can correspond to wide measurement and inspection.
- Movement at maximum speed is enabled by pushing ghigh speed buttonh while operating, and repeated operation is improved.

- Combining acceptable model
Push-pull tester:AP seriesAMP seriesAMPS seriesiMPS-500N or less)AMPC seriesiMPC-500N or lessj
EDigital force gauge:
ARF seriesiARF-50 or lessj

With reversible mechanism type
Model M-501E1S M-501E2S
Size mm(length~side~depth) 790~250~360 790~250~360
Weight About 50 About 50
Maximum load capacity 500N 500N
The maximum stroke 100 100
Sending pitch 10`100mm/min 20`200mm/min
Main body externals dimensional drawing
Without reversible mechanism type
Model M-501E1N M-501E2N
Size mm(length~side~depth) 790~250~360 790~250~360
Weight About 40 About 40
Maximum load capacity 500N 500N
The maximum stroke 125 125
Sending pitch 10`100mm/min 20`200mm/min
Main body externals dimensional drawing
To the head of this page

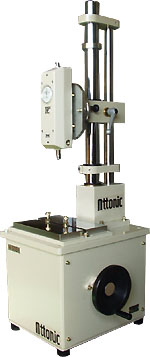

M-502H(manual vertical load measuring stand)
M-502H - It is a load stand that can be measured up to2KN(200kgf)for the measurement that is pushed and pulled.
- Because the column (pillar) is composed of two (the operation column and the support column), a steady measurement can be done.
- It is possible to move in the column bar, and the work set is smooth.
- New establishment of a high-speed button It is possible to move at maximum speed while moving up and down.
- A push-pull tester in the photograph is another sales.

- Combining acceptable model
Push-pull tester:MPL series
EDigital force gauge:ARF seriesi1KN-2KNj
With reversible mechanism type
Model M-502HS
Size mm(length~side~depth)
Weight About 70
Maximum load capacity 2KN
The maximum stroke 100
Sending pitch 0.25/1rev.
Column bar stroke 125mm
Driving screw P=5mm
Size of resisting pressure version 300~200mm
Without reversible mechanism type
Model M-502HN
Size mm(length~side~depth)
Weight About 70
Maximum load capacity 2KN
The maximum stroke 100
Sending pitch 0.25/1rev.
Column bar stroke 125mm
Driving screw P=5mm
Size of resisting pressure version 300~200mm

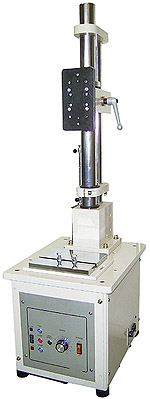

M-502E(electric vertical load measuring stand)
M-502E - It is a load stand that can be measured up to2KN(200kgf)for the measurement that is pushed and pulled.
- Because the column (pillar) is composed of two (the operation column and the support column), a steady measurement can be done.
- It is possible to move in the column bar, and the work set is smooth.
- New establishment of a high-speed button It is possible to move at maximum speed while moving up and down.

- Combining acceptable model
Push-pull tester:MPL series
EDigital force gauge:ARF seriesi1KN-2KNj
With reversible mechanism type
Model M-502ES
Size mm(length~side~depth)
Weight About 85
Maximum load capacity 2KN
The maximum stroke 100
Sending pitch 5`50mm/min
Column bar stroke 125mm
Driving screw P=5mm
Size of resisting pressure version 300~200mm
Power supply AC100V@10A
Without reversible mechanism type
Model M-502EN
Size mm(length~side~depth)
Weight About 85
Maximum load capacity 2KN
The maximum stroke 100
Sending pitch 5`50mm/min
Column bar stroke 125mm
Driving screw P=5mm
Size of resisting pressure version 300~200mm
Power supply AC100V@10A
To the head of this page
M-505H(manual horizontal load measuring stand)
M-505HS It is small, light body and low price.
The height of the table was lowered, and long-time measurement was enabled at the desk-top.
It is push-pull load measuring stand up to 500N (50kg).

- Combining acceptable model
Push-pull tester:AP seriesAMP seriesAMPS seriesiMPS-500N or less)AMPC seriesiMPC-500N or lessj
EDigital force gauge:
ARF seriesiARF-50 or lessj
With reversible mechanism type
Model M-505HS
Size mm(length
~side~depth)
260~750~325
Weight
Maximum load capacity 500N
The maximum stroke P00
Sending pitch 2.0/1rev.
Without reversible mechanism type
Model M-505HN
Size mm(length
~side~depth)
260~750~325
Weight
Maximum load capacity 500N
The maximum stroke P00
Sending pitch 2.0/1rev.
M-505E(electric horizontal load measuring stand)
M-505ES It is small, light-weight and low price in the field of Motorized type.
Movement at maximum speed is enabled by pushing ghigh speed buttonh while operating, and repeated operation is improved.
It is push-pull load measuring stand up to 500N (50kg).

- Combining acceptable model
Push-pull tester:AP seriesAMP seriesAMPS seriesiMPS-500N or less)AMPC seriesiMPC-500N or lessj
EDigital force gauge:
ARF seriesiARF-50 or lessj
With reversible mechanism type
Model M-505E1S M-505E2S
Size mm(length~side~depth) 260~750~22O 260~750~22O
Weight
Maximum load capacity 500N 500N
The maximum stroke P00 P00
Sending pitch 10`100mm/min 20`200mm/min
Without reversible mechanism type
Model M-505E1N M-505E2N
Size mm(length~side~depth) 260~750~220 260~750~220
Weight
Maximum load capacity 500N 500N
The maximum stroke P00 P00
Sending pitch 10`100mm/min 20`200mm/min
To the head of this page
M-507E(electric horizontal load measuring stand)
M-507E - It is a load stand that can be measured up to 5KN(500kgf)for the measurement that is pushed and pulled.
- A dispersion prevention cover and a push-pull tester in the photograph are another sales.

- Combining acceptable model
Push-pull tester:MPL series
EDigital force gauge:ARF seriesi1KN-5KNj
It makes an effort as brought close to a color as original as possible, and there is an image when it is actual and it differs somewhat from the color.
Please acknowledge it.
There are semi-standardized goods and special goods besides the above-mentioned, too. Please inquire.
Moreover, it will produce if the measuring load, the stroke, and the speed, etc. can be specified and consult, please.
