| Easiness to use, high performance, and the low price were achieved. |
 |

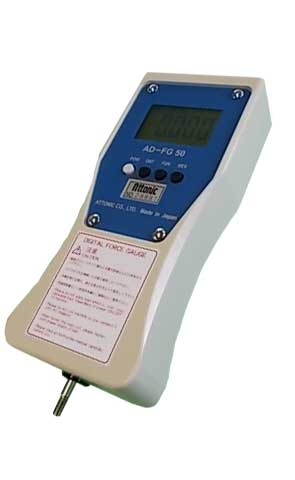

AD-FG series * standard type |
|
◆Compression Peak/Tension Peak Mode
A series of insertion / removal maximum measurement is separately displayed
on a two-section screen.
◆External input / output function
The gauge can be operated by receiving external signals.
1.Continuous data capture signal "COP": It is possible to capture
the data and see real-time changes while the "COP" signal is
being input at 2KHZ intervals.
2.One-shot data capture signal "INT": Data can be captured at
any time.
◆USB connection
By connecting to a personal computer (PC) via USB, it is possible to change
the settings of this gauge by the PC, or send data to the PC.
◆Printer output
Data can be output to a printer without PC.
*Please use Mitutoyo's Digimatic Mini Processor (DP-1VA) as the dedicated
printer.
◆With backlight
Clear visibility in dimly lit places.- Push-pull load measurement can be
measured.
In detail
|
|
*Digital force gauge AD-FG100 and AD-FG500 with a load capacity of 1000N
or more are currently under development.
Discontinued product
|
 |
ARF series * standard type and small size |
|
- Push-pull load measurement can be measured.
Either handlend measurement and measurement with special stand can be measured.
- Miniaturized peculiar externals
Shape of the main body is the same as analog push-pull tester (AP series).
- As for the digital display, it is reversible.
The digital display can be reversed by the mode setting.
- The kind of the external I/O is standard equipment of enhancement.
External reset input, Digimatic output, RS-232C output, comparator output,
and analog output are available.
- The minimum display digit is detailed.
For instance, a minimum display is 0.01N in ARF-10 (100N or less).
A minimum display is 0.1N in ARF-50 (500N or less).
In detail
|
|
|
 |
ARF series * Large-scale |
|
- Push-pull load measurement can be measured.
Please install it in the stand for use .
- As for the digital display, it is reversible.
The digital display can be reversed by the mode setting.
- The kind of the external I/O is standard equipment of enhancement.
External reset input, Digimatic output, RS-232C output, comparator output,
and analog output are available.
- The minimum display digit is detailed.
For instance, a minimum display is 0.1N in ARF-100 (1000N or less).
A minimum display is 0.01KN in ARF-500 (5KN or less).
- The low price is achieved.
In detail
|
|
|
 |
ARF series * Separation type |
|
- It is a separation type into which the main body of the indicator and
the load cell divide.
- Push-pull load measurement can be measured.
The loadcell can be installed into special stand and other equipments for
measurement.
- Miniaturized peculiar externals
Shape of the main body of the indicator is the same as analog push-pull
tester (AP series).
- As for the digital display, it is reversible.
The digital display can be reversed by the mode setting.
- The kind of the external I/O is standard equipment of enhancement.
External reset input, Digimatic output, RS-232C output, comparator output,
and analog output are available.
- The minimum display digit is detailed.
For instance, a minimum display is 0.01N in ARFS-10 (100N or less).
A minimum display is 0.1N in ARFS-50 (500N or less).
- The low price is achieved.
In detail
|
|
|
|
|
|
