MP series
Handheld Measuring Instrument with aluminum die cast body.
MP series Feature
It enables you to do push-pull load measurement in your hand.
Reset button is put hear the tip of the finger for more efficient work,so it is suitable for repeated work.
Seven kinds of attachments are standard attached.
Please use it for various measurements.

- Guaranteed term One year
- Example of using measurement
EOperation power measurement of switch
ESoldering strength measurement
EOpening and shutting power measurement of door
EDestruction measurement of plastic component
ELoad setting in clamping lever mechanism etc.

Combination agreement load stand
K-501505M-501505KS-501KM-501
Catalog of MP series / Manual of MP series
Main body externals dimensional drawing
Accessory (attachment) externals dimensional drawing
Option
carrying case Carrying case(model: CC-50)
Material
Box: Cardboard
(surface crossing finish)
Interior: Styrene foam
Please use it to keep and to carry.
special steering wheel Special steering wheel(model: HP-50)
Push-pull is installed.
It is a steering wheel to do the measurement that uses both hands.

Special steering wheel externals dimensional drawing

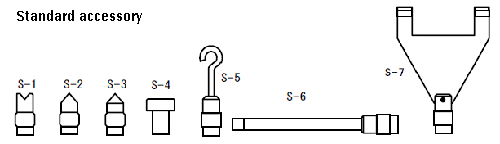

standard accessory
Model Greates
measured value
Minimum
scale value
Accuracy Stroke Weight
MP-3N 3m 0.02m }0.2% of full-scale 10mm About 750g
MP-5N 5m 0.05m
MP-10N 10m 0.1m
MP-20N 20m 0.2m
MP-30N 30m 0.2m
MP-50N 50m 0.5m
MP-100N 100m 1m
MP-200N 200m 2m
MP-300N 300m 2m
MP-500N 500m 5m
It makes an effort as brought close to a color as original as possible, and there is an image when it is actual and it differs somewhat from the color.
Please acknowledge it.
